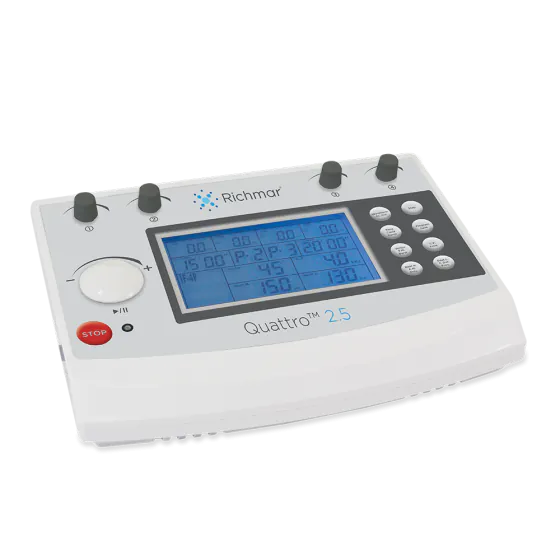

The microprocessor-controlled Quattro™ 2.5 is a professional four-channel electrotherapy device that provides IF 4-Pole, IF 2-Pole, Russian, EMS, and TENS waveforms with two separate timers. It’s portable design lets you take it to your patient, or keep it at the clinic. It’s easy to use, and up and running within minutes. The Quattro 2.5 has an advanced operating system that ensures a complete range of therapy no matter where you use it!

Indications For Use:

• For TENS, Interferential and Premodulated (IFC):
• Symptomatic relief of chronic intractable pain
• Post-traumatic acute pain
• Post-surgical acute pain
• For EMS and Russian Stim:
• Relaxation of muscle spasms
• Prevention of disuse atrophy
• Increasing local blood circulation
• Muscle re-education
• Maintaining or increasing range of motion
• Immediate post-surgical stimulation of calf muscles to prevent venous thrombosis


Product Features:

• Two separate timers to treat two areas/patients at once, or one larger area.
• STIM indicator light for precise intensity control

• Preset protocols as well as customized user-defined protocols
• Four channels of electrical stimulation output
• Large, easy-to-read graphical LCD display with exact dial performance and two programmable timers
• Waveforms include TENS, EMS, 2-pole Interferential, 4-pole Interferential, and Russian Stim

• 10-presets per waveform totaling 50-presets in all (plus professional mode)·
• Designed for tabletop, therapy cart, or mobile use
• Product Dimensions: 10 ½” (W) x 15” (L) x 8” (H)
• Product Weight: 6.7 lbs
• 2 Year Manufacturer Warranty
• Package includes:

• 8x Sets of Electrodes
• 8x Sets of Rubber Electrodes with Sponges
• 4x Elastic Straps
• 4x Sets of Lead Wires
• Two Connector Cables
• Power Cord

• User Manual with Preset Protocol Guide

Product Specifications:

• Waveform:

• Mono-phasic square (TENS)
• Biphasic square (2-pole, 4-pole, EMS, & Russian)
• Mode Selection: CC (Constant Current) or CV (Constant Voltage)
• Adapter Supply Voltage: 100-240 VAC, 50-60 Hz, 0.6A
• Adapter Output: 15V - 1.2A Max.
• Maximum Treatment Time: 60 Minutes

Waveform Specifications:

• 4-Pole Interferential Mode
• Waveform Type: Bi-phasic square
• Mode Selection: CC (Constant Current) or CV (Constant Voltage)
• Vector: Auto: 0%-100%, Manual: 0°-90°
• Carrier Frequency (C.F.): 4.0kHz
• Sweep Low Beat Frequency (Beat L): 1 - (Beat H) Hz

• Sweep High Beat Frequency (Beat H): (Beat L) - 150 Hz
• Output Intensity: 0-50mA (CC, at 1k ohm load); 0-50V (CV, at 1k ohm load)
• Treatment Time: 1-60 minutes
• 2-Pole Interferential Mode
• Waveform Type: Bi-phasic square
• Mode Selection: CC (Constant Current) or CV (Constant Voltage)
• Carrier Frequency (C.F.): 4.0kHz
• Sweep Low Beat Frequency (Beat L): 1-(Beat H.) Hz
• Sweep High Beat Frequency (Beat H): (Beat L.) - 150 Hz

• Output Intensity: 0-50mA (CC, at 1k ohm load); 0-50V (CV, at 1k ohm load)
• Treatment Time: 1-60 minutes
• TENS Mode
• Waveform Type: Mono-phasic square
• Mode Selection: CC (Constant Current) or CV (Constant Voltage)
• Frequency: 1-250 Hz
• Frequency modulation (F.M.): 0-249 Hz
• Burst Rate (Burst): 0-10Hz (7 pulse)
• Phase Duration (P. Dur): 30-400µs
• Amplitude Modulation (A.M.): 0%-100%
• Output Intensity: 0-100mA (CC, at 1k ohm load); 0-100V (CV, at 1k ohm load)
• Cycle Time (Cycle): Continuous, 4/4, 4/8, 7/7, 5/5, 4/12, 10/10, 10/20, 10/30, 10/50
• Treatment Time: 1-60 minutes
• EMS Mode
• Waveform Type: Bi-phasic square
• Mode Selection: CC (Constant Current) or CV (Constant Voltage)
• Frequency: 1-250 Hz
• Frequency Modulation (F.M.): 0-249 Hz
• Step Duration (P. Dur): 30-400µs
• Amplitude Modulation (A.M.): 0%-100%
• Output Intensity: 0-100mA (CC, at 1k ohm load); 0-100V (CV, at 1k ohm load)
• Treatment Time: 1-60 minutes
• Ramp Time: 1s, 2s, and 5s
• Cycle Time: Continuous, 4/4, 4/8, 7/7, 5/5, 4/12, 10/10, 10/20, 10/30, 10/50
• Russian Mode
• Waveform Type: Bi-phasic square
• Mode Selection: CC (Constant Current) or CV (Constant Voltage)
• Carrier Frequency (C.F.): 2.5kHz
• Burst Frequency (Freq.): 20-100 Hz
• Output Intensity: 0-50mA (CC, at 1k ohm load); 0-50V (CV, at 1k ohm load)
• Duty Cycle: 10%, 20%, 30%, 40%, and 50%
• Cycle Time: Continuous, 5/5, 4/12, 10/10, 10/20, 10/30, 10/50
• Treatment Time: 1-60 minutes
• Ramp Time (Ramp): 1s, 2s, and 5s
