Available as Brand New in Box

or

Like-New Showroom Demo

Condition: Like-New Showroom / Demo Unit
Use: Display or demonstration only (not placed into clinical service)
Quality: Fully inspected and tested
Availability: Limited quantity

• Instruction Manual: English | Spanish
• Quick Start Guide: Click Here
• Specs Sheet: Click Here
• In-Service Training Video Series: Click Here
• PROMO: Buy 1 Unit, Get 20 FREE Packs Of 2" x 2" Electrodes In Your Package

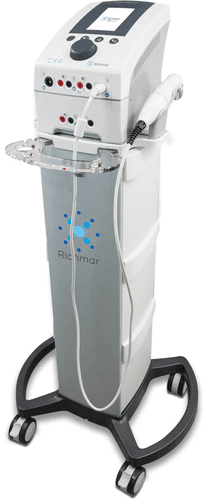

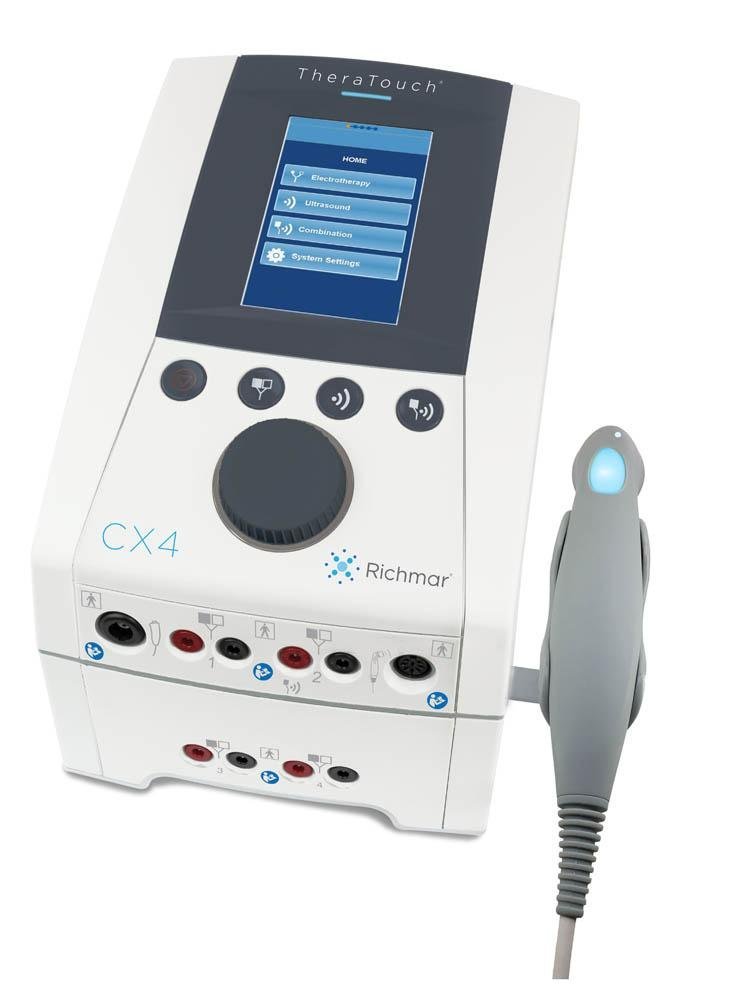

The Richmar TheraTouch CX4, formerly the InTENSity CX4, is an advanced combination four-channel electrotherapy and ultrasound therapy system, offering the practitioner a wide range of treatment options in one user-friendly, ergonomic design.

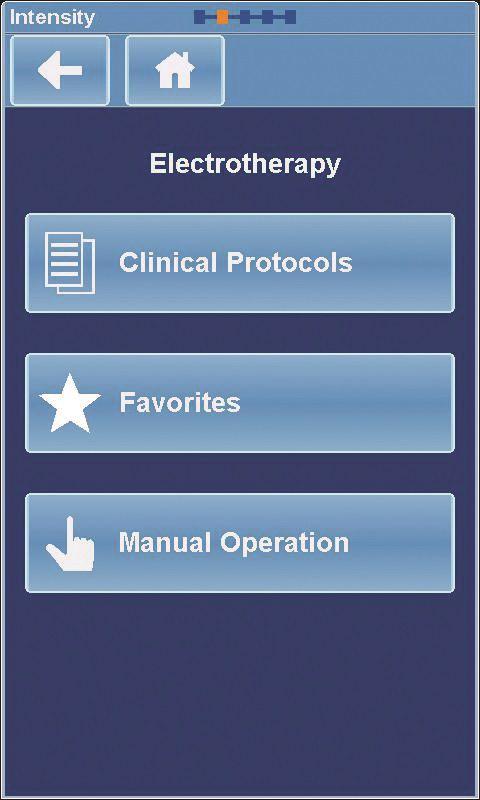

Equipped with a menu-driven color screen with touch interface that intuitively groups and displays clinical protocols, guiding clinicians step-by-step to ensure the ideal therapeutic treatment.

• Electrotherapy waveform rationale
• Appropriate parameter settings
• Electrode placement guide
• Ultrasound applicator recommendations

A few simple key presses are all that is needed to quick-start a treatment. Parameters can be easily selected and adjusted. Clinicians can choose to use preset clinical protocols or customize their own. The “Favorites” feature allows user-defined protocols to be stored for future use.

The four electrotherapy channels can be used in combination with ultrasound, or totally independent, with different protocols running simultaneously. The ergonomically designed 5 cm² sound head provides for an excellent ERA.

• Interferential (Premodulated 2-Pole & Traditional 4-Pole)
• TENS (Biphasic)
• Neuromuscular Stimulation (EMS/NMS)
• Russian Stim
• High Volt Pulsed Current (HVPC)
• Microcurrent
• Therapeutic Ultrasound
• *NEW* RAAS (Rapid Agonist & Antagonist Sequencing)


In addition, the TheraTouch CX4 offers a comprehensive library with treatment education and suggested electrode placement for better treatment outcome and improved clinic efficiency.

Features:

• Combination electrotherapy and ultrasound therapy system
• 4 channels of independent stimulation can be used in combination (linked) or totally independent
• Multi-patient function provides the ability to treat up to three patients at once for maximum practice usage
• Independent intensity and parameter controls for each channel
• Sleek, user-friendly, ergonomic design for table top or therapy cart use
• Large, easy-to-read, color LCD display with touch screen interface
• Multiple waveform electrotherapy with six clinical waveform modalities
• Clinical protocols providing the appropriate parameters for a variety of acute and chronic conditions
• Manual operation allows for user-defined protocols
• “Favorites” feature allows storage of up to 99 custom programs for future use
• Comprehensive library provides treatment education and suggested electrode placement
• Patient Remote Kill Switch connection allows patient to stop treatment at the push of a button
• 1 and 3 MHz ultrasound frequencies
• Pulsed and Continuous Modes
• Ergonomically designed 5 cm² sound head for excellent ERA during treatments (1 cm² sound head optional)
• Low BNR ratio of 5:1
• Ultrasound Amplitude can be toggled between w and w/cm²
• Sound head coupling feature

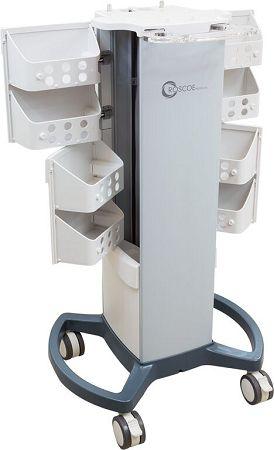

• Optional therapy cart (DQCART-2), sold separately, integrates with the unit and keeps supplies organized and ready for treatments
• Three-year Manufacturer Warranty

Technical Specifications:

• Number of Channels: Four, Isolated
• Treatment Time: 1-60 min, adjustable
• Power Supply: 100-240 VAC, 50-60 Hz
• Dimensions (LxWxH): 11.25” x 7.75” x 9.5”
• Weight: 6 lbs.
• UPC: 092237615218

Video Resources

TheraTouch CX4 Clinical Electrotherapy with Ultrasound from Richmar on Vimeo.
