Chattanooga Intelect Transport 2

The Intelect Transport 2 line of electrotherapy products provides the reliability and value that only a Chattanooga product can offer. The lightweight, durable design and battery powered option provide the versatility needed to treat your patients and athletes in any professional environment. Based on decades of experience from the original Intelect Transport line, Intelect Transport 2 is easy and intuitive to use and includes all of the essential features needed to get your patients moving.

COMBO

The Intelect Transport 2 COMBO is a two-channel electrotherapy, ultrasound therapy and combo system used with or without an optional cart. For combo therapy 5 waverforms are included for electrical stimulation: Interferential, Premod, Russian, High Volt and VMS. Fully functional 1 and 3.3 MHz ultrasound frequencies are also included. This equipment is to be used only under the supervision of a licensed healthcare professional.

ULTRASOUND

The Intelect Transport 2 ULTRASOUND is an ultrasound therapy system used with or without an optional cart. Ultrasound frequencies of 1 or 3.3 MHz are available with pulsed or continuous duty cycles (10%, 20%, 50% and 100%). The device comes standard with a 5cm2 ultrasound applicator, however additional sizes are available. Coupling detection settings give the option to alert the clinician when the applicator has become decoupled from the patient by an audible beep and stopping the treatment timer. This equipment is to be used only under the supervision of a licensed healthcare professional.

TECHNICAL SPECIFICATIONS

POWER

Input: 100 - 240 V AC. 1.0 to 0.42 A, 50/60 Hz 100 W Max

Electrical Class: CLASS I

Mode of Operation: Continuous

Ultrasound: .TYPE B

Electrotherapy: .TYPE BF

ELECTRO STIMULATION SPECIFICATIONS

Load impedance: 500-1000 0hm

CC = Constant Current, effect of load impedance on voltage

CV = Constant Voltage, effect of load impedance on current

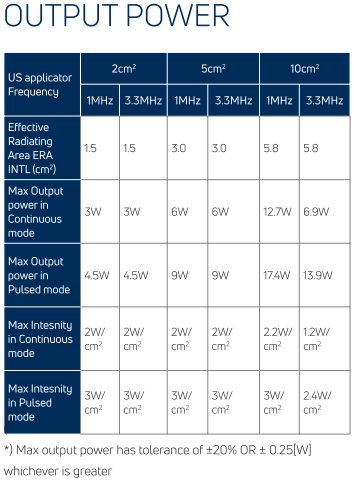

ULTRASOUND SPECIFICATIONS

Frequency: 1 MHz; 3.3 MHz

Duty Cycles: 10%, 20%, 50%, Continuous

Pulse Repetition Rate: 100 Hz

Pulse Duration: 1-5ms
