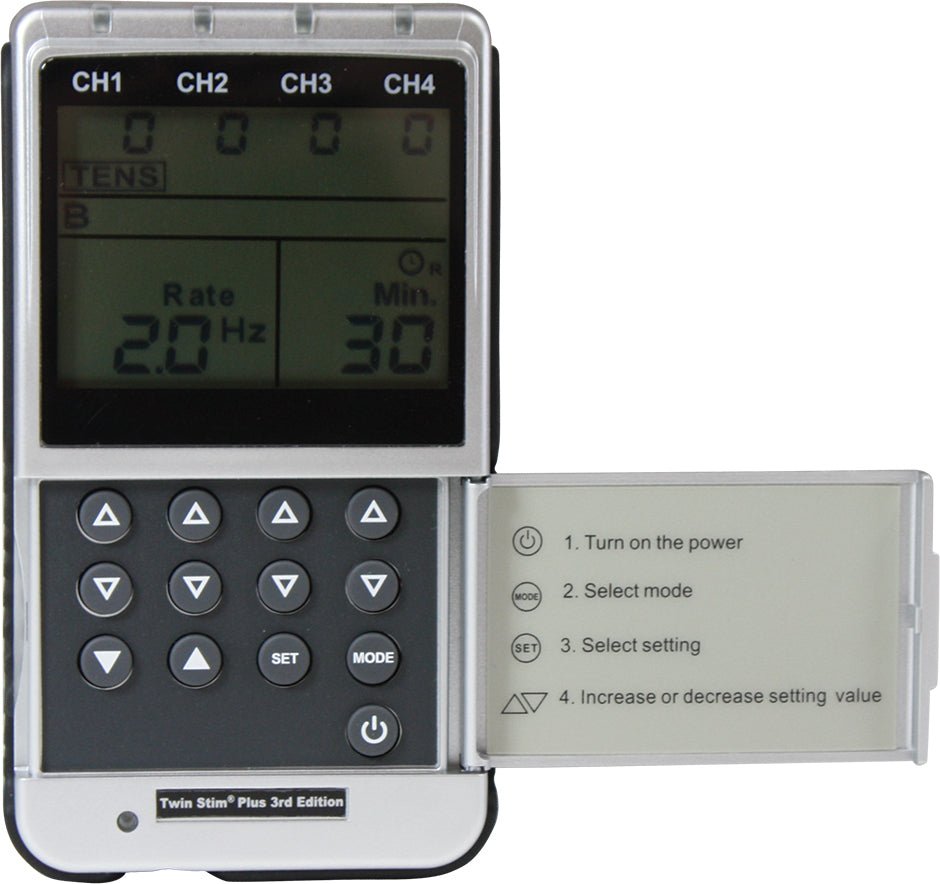

Twin Stim Plus 3rd Edition - 4 Channel Digital TENS, EMS, IF & Russian Unit

The Twin Stim Plus 3rd Edition is a high quality four channel device that combines TENS, EMS, IF (interferential), and Russian Stim therapies in single portable and easy-to-use unit. With separate intensity controls for each channel, and fully adjustable parameters, patients can easily customize their treatment for their specific case. Additionally, with four channels, patients have the ability to treat large areas, such as the entire back, or multiple treatment sites, at the same time!

Other features include adjustable ramp time, a large LCD screen display, two treatment timers, and a patient compliance meter to store operation records for future use.

Product Features:

• Simple to operate, portable device for pain management
• Reduces inflammation and edema
• Great for muscle rehabilitation and re-education
• Increases local blood circulation and relaxes muscle spasms
• Intensity level is controlled by the press of a button
• Four Electrotherapy Stimulation Programs: TENS, EMS, IF, and Russian Stim
• Five modes for TENS therapy: Burst (B), Normal (N), Modulation (M), Strength-Duration 1 & 2 (SD1 & SD2)
• Three modes for EMS therapy: Constant, Synchronous, and Alternate
• Three modes for IF therapy: Normal, Modulation, and Modulation 1
• Three modes for Russian Stim therapy: Normal, Modulation, and Modulation 1
• 1 Year Manufacturer Warranty

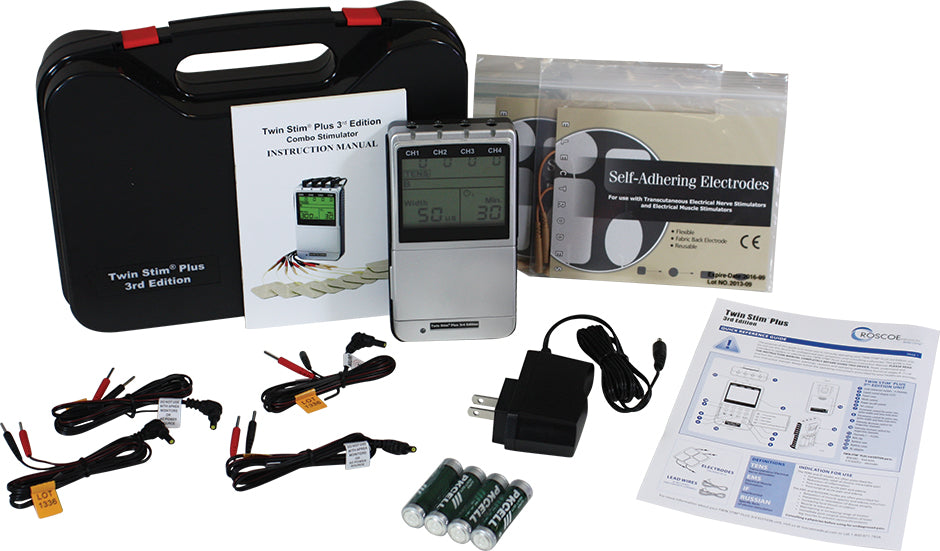

• Package includes everything you need to start treatment right away
• 1x Twin Stim Plus 3rd Edition Device
• 4x Sets of 45" Lead Wires
• 4x AA Batteries
• AC Adapter
• 2x Packs of Four High Quality Self-Adhesive Electrodes
• Hard Plastic Carrying Case

• Instruction Manual

Product Specifications:

• Channel: Four, isolated between channels
• Allows the use of up to 8x electrodes at a time
• Waveform: Biphasic Square Pulse
• Pulse Amplitude (Output Intensity): 0-80mA, 500O load

• Pulse Rate:
• TENS/EMS: 2-150Hz
• IF: 4000-4150Hz
• Russian Stim: 2500Hz (Fixed rate); 20-80Hz (Burst rate)
• Pulse Width: 50-300µs
• On Time: Adjustable, 2-90 seconds, 1 sec/step
• Off Time: Adjustable, 0-90 seconds, 1 sec/step
• Ramp Time: Adjustable, 1-8 seconds, 1 sec/step
• The "On" time will increase and decrease the setting value
• Treatment Time: Two adjustable timers, from 1 to 60 minutes or Continuous.
• Adjustable in 1 minute each step from 1 to 15 minutes, and 5 minutes each step from 15 to 60 minutes.
• Treatment time counts down automatically.
• Patient Compliance Meter: The unit can store up to 60 sets of operation records
• Total recorded time is 999 hours.
• Power Source:

• DC 6V, 4x AA 1.5v Batteries or,

• AC adapter output: DC 9V, 800mA
• Dimensions: 5.4" x 3.1" x 1.1"
• Weight: 1 lb. with battery
