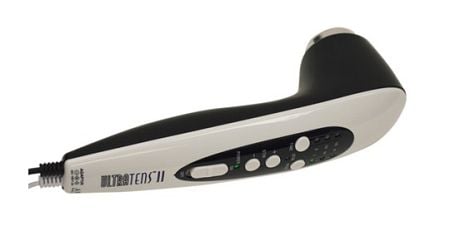

Ultra TENS 2nd Edition 2-in-1 Portable Ultrasound & TENS Combo
Product Features:
- Combines therapeutic ultrasound and TENS for patients needing stronger therapy
- Ergonomically designed 5 cm² aluminum soundhead
- Features 1 MHz frequency with 3 power levels and 30 mA of TENS therapy for deep therapeutic treatment
- Beam Non-uniformity Ratio (BNR) 5:1 max
- Small, unique design that is portable and easy to operate
- Three treatment times (5 min, 10 min or 15 min)
- Automatic power shut-off after 10 minutes
- Power Source: AC/DC adapter
- One year manufacturer warranty

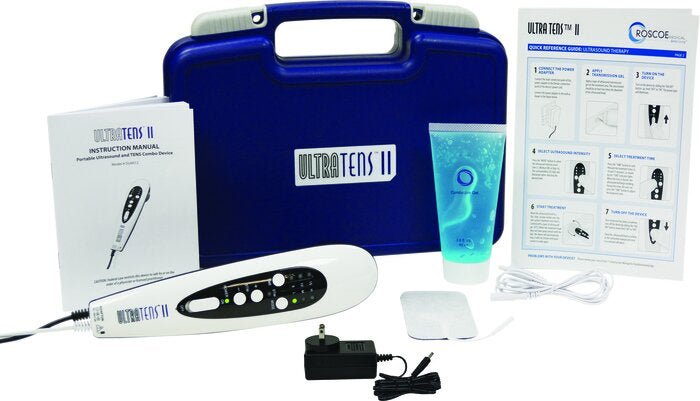

- Comes complete with:
- 1x UltraTENS II device
- 1x 2” x 4” white cloth electrode
- 1x set of lead wires
- 1x A/C power adapter
- 1x 2oz tube of ultrasound gel
- Quick start guide and instruction manual
- Hard plastic carrying case
Product Specs:
- Main Device
- Current Consumption: 18W
- Working Current: < 1.1A
- Safety Class: Class II, BF-type
- Device Dimension (LxWxH): 7.9" x 1.9" x 2.8" in
- Weight: 7.4 oz (210g)
- Ultrasound
- Acoustic Frequency: 1 MHz ± 10%
- Temporal Maximum Power: 9.6W ± 20% (duty factor: 100%)
- Pulse Repetition Rate: 100 Hz ± 10%
- Duty Factor: 30%, 40%, 50%
- Effective Radiating Area (ERA): 4.0 cm² ± 20%
- Temporal Maximum Effective Intensity: 2.4W/cm²
- BNR (max): 5.0
- Beam Type: Collimated
- Waveform: Pulsed
- Treatment Time: 5 min, 10 min, 15 min
- Material of Treatment Head: Aluminum
- TENS
- Output Characteristics: Constant Voltage (CV)
- Treatment Time: 5 min, 10 min, 15 min
- Output Wave: Bi-phasic square waveform
- Carrier Frequency (C.F.): 2.5kHz
- Sweep Low Beat Frequency (Beat L): 1Hz, 5Hz, 80Hz
- Sweep High Beat Frequency (Beat H): 10Hz, 120Hz
- Maximum Output: 0-15V (at 500O Load)
