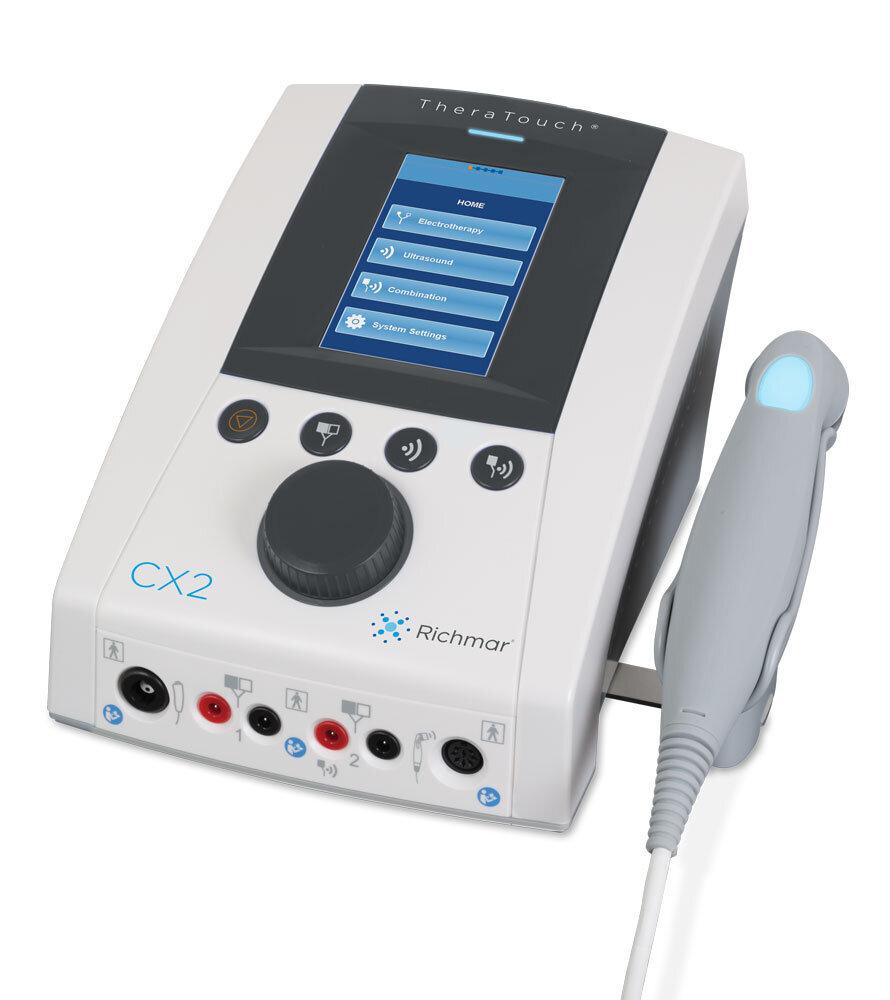

Richmar TheraTouch® CX2

Combining electrotherapy and stim into a single device is convenient. It takes up less space, and obviously poses significant cost savings when compared with buying two separate devices. This has made our four-channel combo devices very popular for clinics of all sizes, particularly those with large, open treatment areas where multiple patients are seen concurrently. What about those who don’t need four channels?

THERATOUCH CX2
TheraTouch CX2 has the same interface and waveforms that have made TheraTouch CX4 a favorite among many clinicians, but with two channels of stim output.

TheraTouch CX2 is ideal for private treatment rooms where four electrotherapy channels may not be needed. Using TheraTouch CX2 in these situations provides savings for the clinic when purchasing their device, without sacrificing the  TheraTouch features that clinicians depend on.

The Richmar TheraTouch CX2, is an advanced combination two-channel e-stim and ultrasound therapy system, offering the practitioner a wide range of treatment options in one user-friendly, ergonomic design.

Equipped with a menu-driven color screen with touch interface that intuitively groups and displays clinical protocols, guiding clinicians step-by-step to ensure the ideal therapeutic treatment.

• Electrotherapy waveform rationale
• Appropriate parameter settings
• Electrode placement guide
• Ultrasound applicator recommendations

A few simple key presses are all that is needed to quick-start a treatment. Parameters can be easily selected and adjusted. Clinicians can choose to use preset clinical protocols or customize their own. The “Favorites” feature allows user-defined protocols to be stored for future use.

The two electrotherapy channels can be used in combination with ultrasound, or totally independent, with different protocols running simultaneously. The ergonomically designed 5 cm² sound head provides for an excellent ERA.

• Interferential (Premodulated 2-Pole & Traditional 4-Pole)
• TENS (Biphasic)
• Neuromuscular Stimulation (EMS/NMS)
• Russian Stim
• High Volt Pulsed Current (HVPC)
• Microcurrent
• Therapeutic Ultrasound
• *NEW* RAAS (Rapid Agonist & Antagonist Sequencing)


In addition, the TheraTouch CX2 offers a comprehensive library with treatment education and suggested electrode placement for better treatment outcome and improved clinic efficiency.

Features:

• Combination electrotherapy and ultrasound therapy system
• 2 channels of independent stimulation can be used in combination (linked) or totally independent
• Multi-patient function provides the ability to treat up to 2 patients at once for maximum practice usage
• Independent intensity and parameter controls for each channel
• Sleek, user-friendly, ergonomic design for table top or therapy cart use
• Large, easy-to-read, color LCD display with touch screen interface
• Multiple waveform electrotherapy with six clinical waveform modalities

• Clinical protocols providing the appropriate parameters for a variety of acute and chronic conditions
• Manual operation allows for user-defined protocols
• “Favorites” feature allows storage of up to 99 custom programs for future use
• Comprehensive library provides treatment education and suggested electrode placement
• Patient Remote Kill Switch connection allows patient to stop treatment at the push of a button
• 1 and 3 MHz ultrasound frequencies
• Pulsed and Continuous ultrasonic output modes
• Ergonomically designed 5 cm² sound head for excellent ERA during treatments (1 cm² sound head optional)
• Low BNR ratio of 5:1
• Ultrasound Amplitude can be toggled between w and w/cm²
• Sound head coupling feature

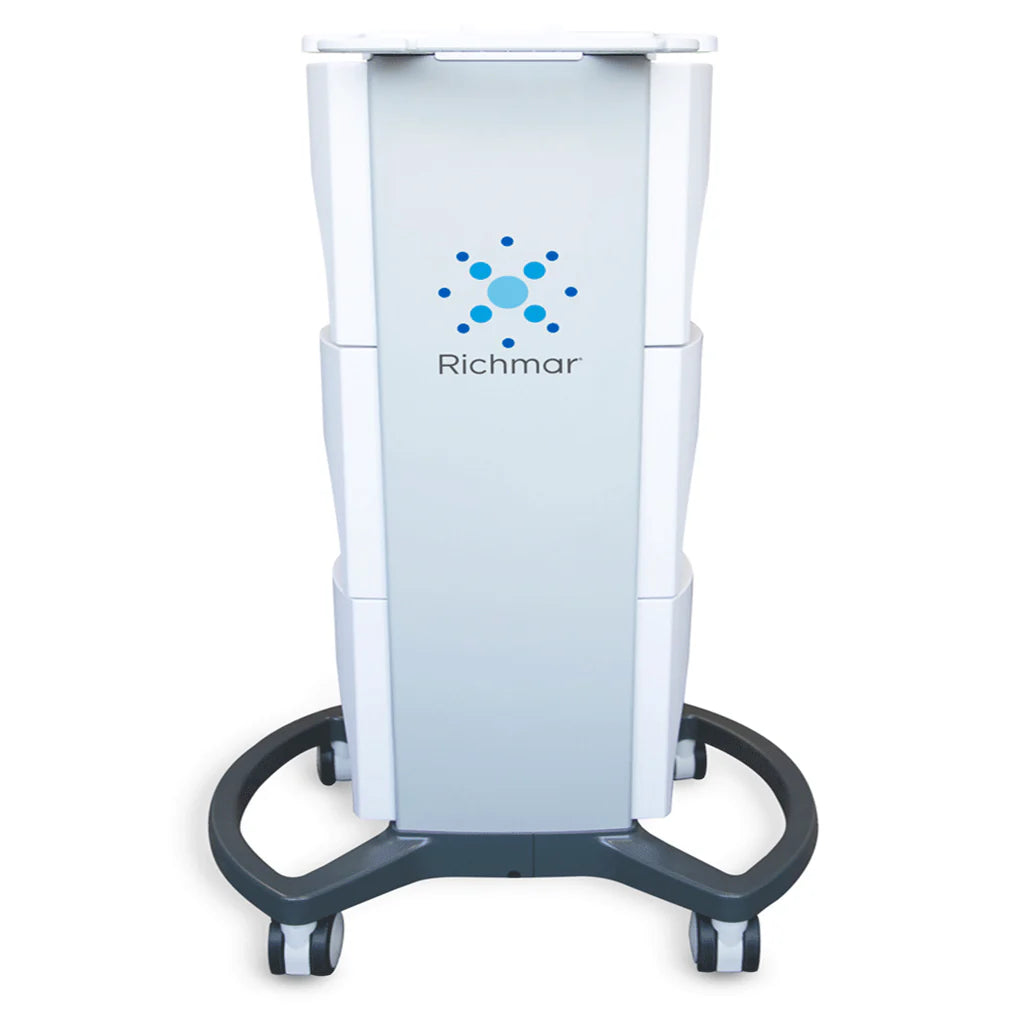

• Optional therapy cart (Part #: DQCART-2), sold separately, integrates with the unit and keeps supplies organized and ready for treatments


Technical Specifications:

• Number of Channels: 2, Isolated
• Treatment Time: 1-60 min, adjustable
• Power Supply: 100-240 VAC, 50-60 Hz
• Dimensions (LxWxH): ~ 12” x 8” x 10”
• Weight: 6 lbs.

8 clinical waveforms

• Interferential (Premodulated 2-Pole & Traditional 4-Pole)
• TENS (Biphasic)
• NMS
• Russian
• High Volt
• Microcurrent
• Therapeutic Ultrasound
• RAAS (Rapid Agonist & Antagonist Sequencing)
